Product Details
＋
DESCRIPTION:
MAXIMUM SPEED. MAXIMUM QUALITY. MAXX DIGITAL®.

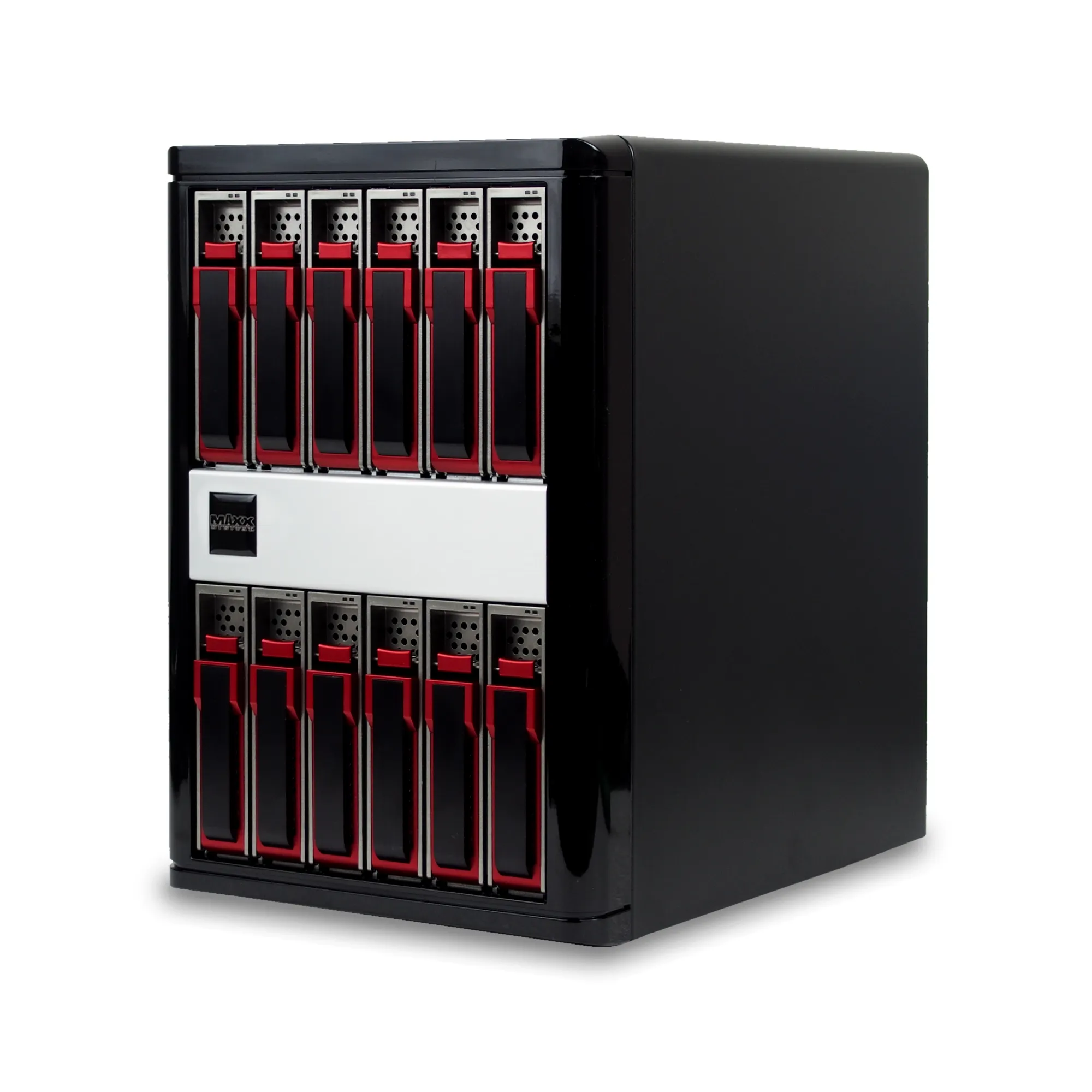

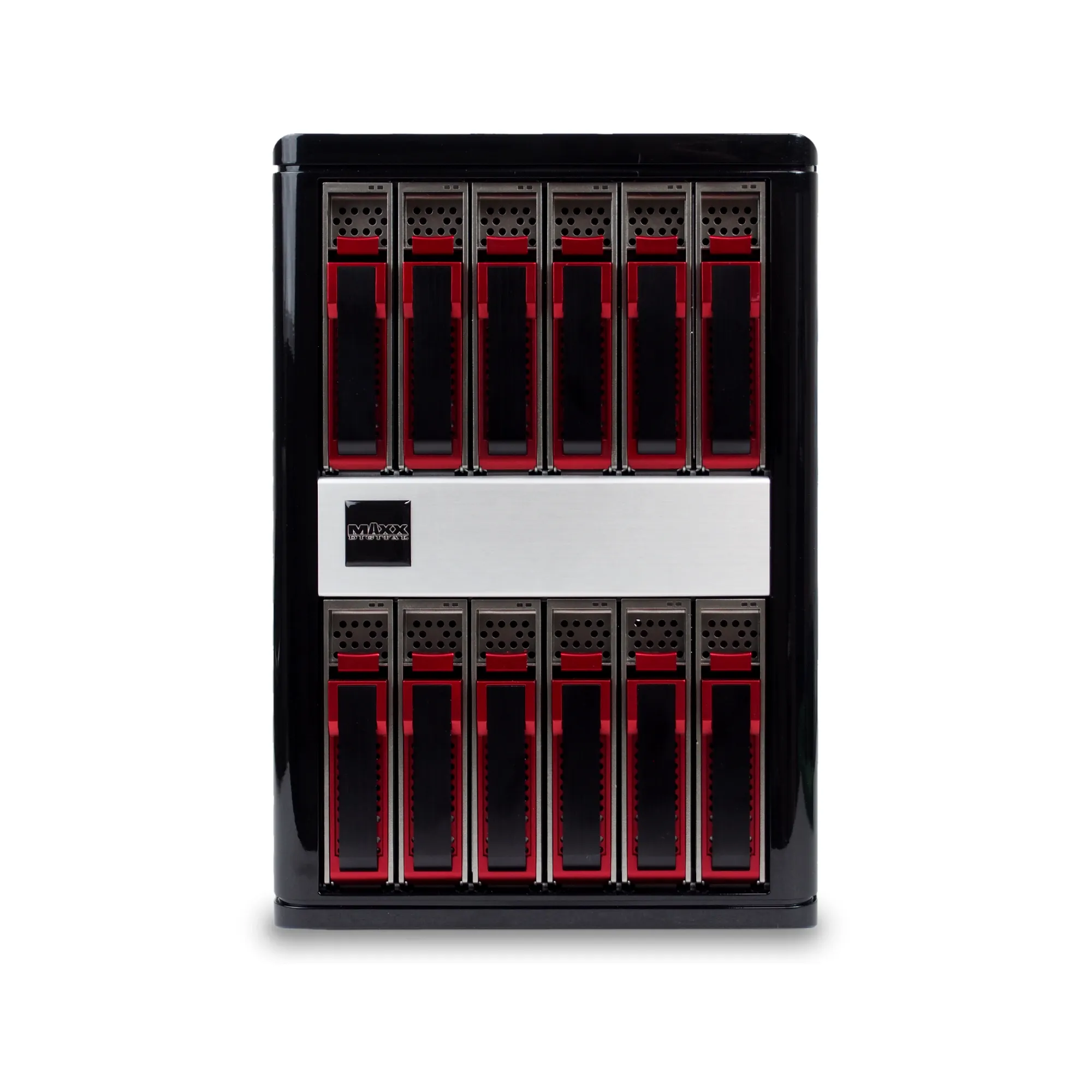

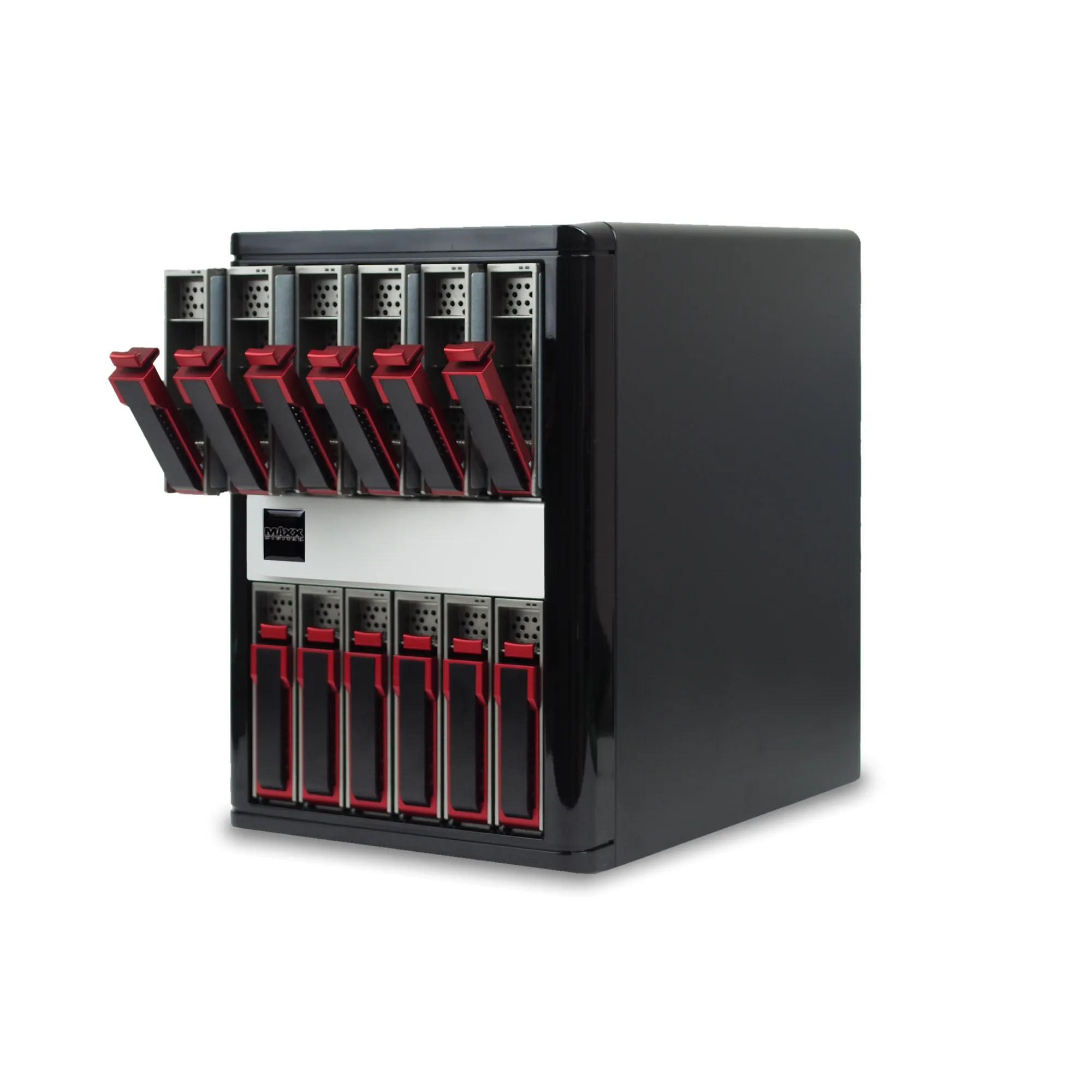

Introducing the all-new EvoRAID 12 Bay from Maxx Digital®. Featuring the latest in SAS-to-SAS JBOD technology for lightning fast data transfer speeds of up to 12Gbit/s. A must have for the latest and greatest in a high speed, high demand work environment. Designed use in critical server and storage solutions with simplicity and flexibility in mind. In these highly competitive professional fields you need to stay ahead of the pack and stay at the cutting edge with EvoRAID.
FEATURES:
- SAS to SAS JBOD Configuration
- Rugged construction
- Enterprise level hard drives available
- Multiple RAID configurations

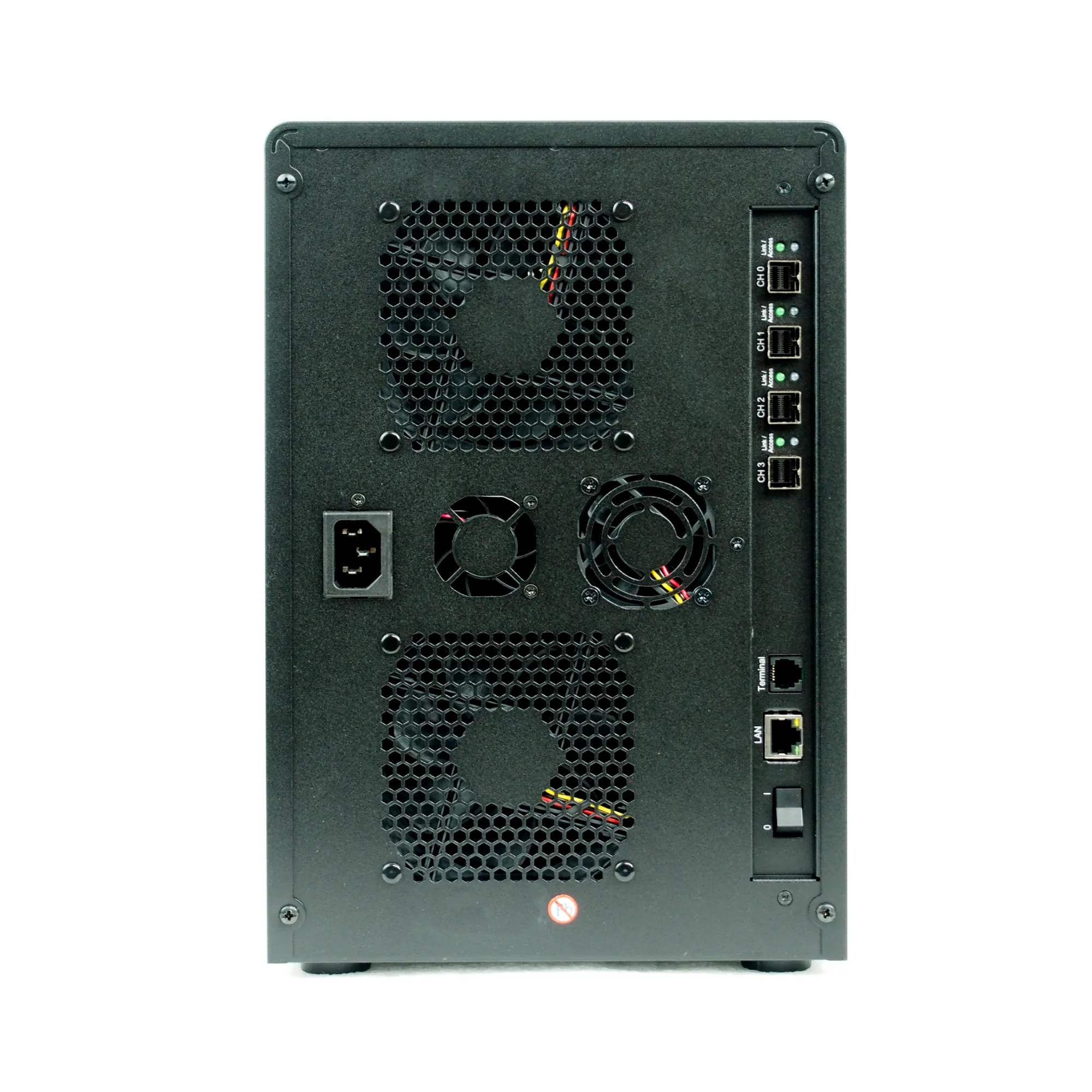

- Four 12Gb/s SFF-8644 and expansion connections
- LED activity/status in each drive carrier
- Daisy chain capacity expansion for additional EvoRAID units.
- Plug & Play add capacity without shutting down
- RAID Card included
SPECIFICATIONS:
Capacity
- 12TB to 144TB
Interface
- (4) MiniSAS 8088 port
Read/Write Speed (Using RAID 5)
- Read: 2200Mbps
- Write: 1800Mbps
- Read (SSD): 2800
- Write (SSD): 1900
RAID Configurations
- 0
- 1
- 1E
- 3
- 5
- 6
- 10
- 30
- 50
- 60
- Single Disk
- JBOD
Transfer Speed
- 12 Gbit/s
INCLUDED:
- (1) Maxx Digit® - EvoRAID 12 Bay
