Fortinet FortiGate 201F UTP Firewall with Bundled Subscription (Local Warranty in Singapore)
-FortiGate-201F 18 x GE RJ45 (including 1 x MGMT port , 1 x HA port , 16 x switch ports) , 8x GE SFP slots , 4 x 10GE SFP slots , NPSXLite and CP9 hardware accelerated ,480GB onboard SSD storage.

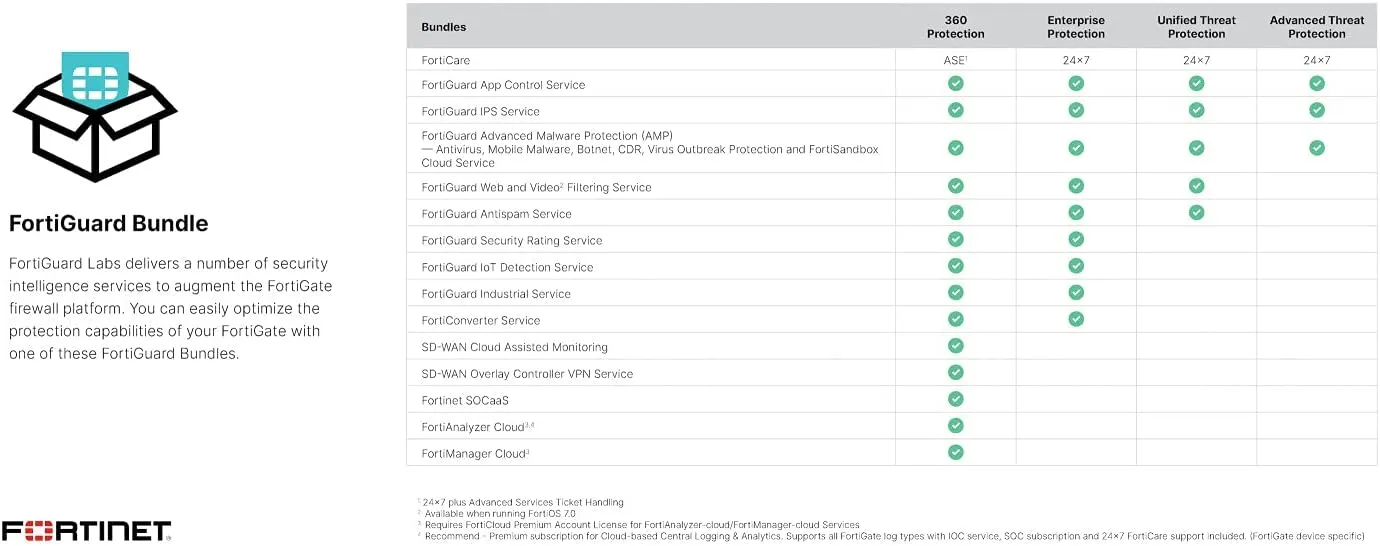

-Includes: ONE (1) Year or THREE (3) Year- Unified Threat Protection (UTP)
(IPS, Advanced Malware Protection, Application Control, Web Filtering, Antispam Service, and 24x7 FortiCare)
Hardware Loaner Swapping Only (OPTIONAL)
• Valid only in Singapore
• 24x7x4 24 hours, 7 days, 4 hours response (Email and phone), 4 hours onsite.
• Unlimited email, phone and remote support
• Replacement of faulty device with permanent/temporary loaner unit upon vendor approval of RMA
• Config restoration to the loaner/ replacement unit
• RMA processing and shipping to and from vendor
• Assist in transferring of FortiGuard licenses and subscription.
Fortinet is a global leader in cybersecurity, delivering a broad, integrated and automated security fabric to enable customers to accelerate their digital journey.
Fortinet is the pioneer of secure networking, delivering flawless convergence that can scale to any location: remote office, branch, campus, data center and cloud.
FortiGate is the heart of FortiOS Everywhere, providing deep visibility and security in a variety of form factors, including container firewalls, virtual firewalls, and appliances.
FortiGate/FortiWiFi® 201F Series
The FortiGate 201F series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
- Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox
Performance
- Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
- Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection
Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives
Networking
- Dynamic Path Selection over any WAN transport to provide better application experience based on self-healing SD-WAN capabilities
- Advanced routing, Scalable VPN, multi-cast and IPV4/IPV6 forwarding powered by purpose-built network processors
Management
- SD-WAN Orchestration provides intuitive and simplified workflow for centralized management and provisioning of business policies in a few easy clicks
- Expedited deployment with Zero touch provisioning well-suited for large and distributed infrastructure §Automated VPN tunnels for flexible hub-to-spoke and full-mesh deployment at scale to provide bandwidth aggregation and encrypted WAN paths
- Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture
Security Fabric
- Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
FG-201F Specification
FG-201F Specification |
|
|
Type |
FORTIGATE 201F |
|
Hardware Specifications |
|
| Interface | 16 x GE RJ45 ports , 1/1 x GE RJ45 Management /HA , 8 x GE SFP Slots , 2 x 10 GE SFP FortiLink Slots (Default) , 2 x 10 GE SFP Slots , |
|
|
|
| USB port |
1 |
|
Console (RJ45) |
1 |
|
Wireless Interface |
- |
|
Internal Storage |
- |
|
System Performance and Capacity |
|
|
Firewall Throughput |
27/27/11 Gbps |
|
Firewall Latency (64 byte UDP Packets) |
4.78 μs |
|
Firewall Throughput (Packet per Second) |
16.5 Mpps |
|
Concurrent Sessions (TCP) |
3M |
|
New Sessions/Second (TCP) |
280,000 |
|
Firewall Policies |
10,000 |
|
IPsec VPN Throughput (512 byte) |
13 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2500 |
|
Client-to-Gateway IPsec VPN Tunnels |
16000 |
|
SSL-VPN Throughput |
2 Gbps |
|
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) |
4 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) |
3500 |
|
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
300,000 |
|
Application Control Throughput (HTTP 64K) |
13 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
20 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
64 |
|
Maximum Number of FortiAPs (Total / Tunnel Mode) |
256 / 128 |
|
Maximum Number of FortiTokens |
5000 |
|
High Availability Configurations |
Active/Active, Active/Passive, Clustering |
|
System Performance |
|
|
IPS Throughput |
5 Gbps |
|
NGFW Throughput |
3.5 Gbps |
|
Threat Protection Throughput |
3 Gbps |
|
Dimensions and Power |
|
|
Height x Width x Length |
1.73 x 17.01 x 13.47inches 44 x 432 x 342 mm |
|
Form Factor |
Ear Mount , 1RU |
|
Power Required |
100–240V AC, 50–60 Hz |
|
Maximum Current |
100V / 2A, 240V AC / 1.2A |
|
Power Consumption (Average / Maximum) |
101.92W / 118.90W |
|
Heat Dissipation |
405.70 BTU/hr |
|
Operating Environment and Certifications |
|
|
Operating Temperature |
32–104°F (0–40°C) |
|
Storage Temperature |
-31–158°F (-35–70°C) |
|
Humidity |
20–90% non-condensing |
|
Noise Level |
49.9 dBA |
|
Operating Altitude |
Up to 7,400 ft (2,250 m) |
|
Compliance |
FDC Part 15B,Class A , CE, RCM, VCCI, BSMI, UL/cUL, CB,BSMI |
|
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN,IPV6 |
Data Sheet
Video Review

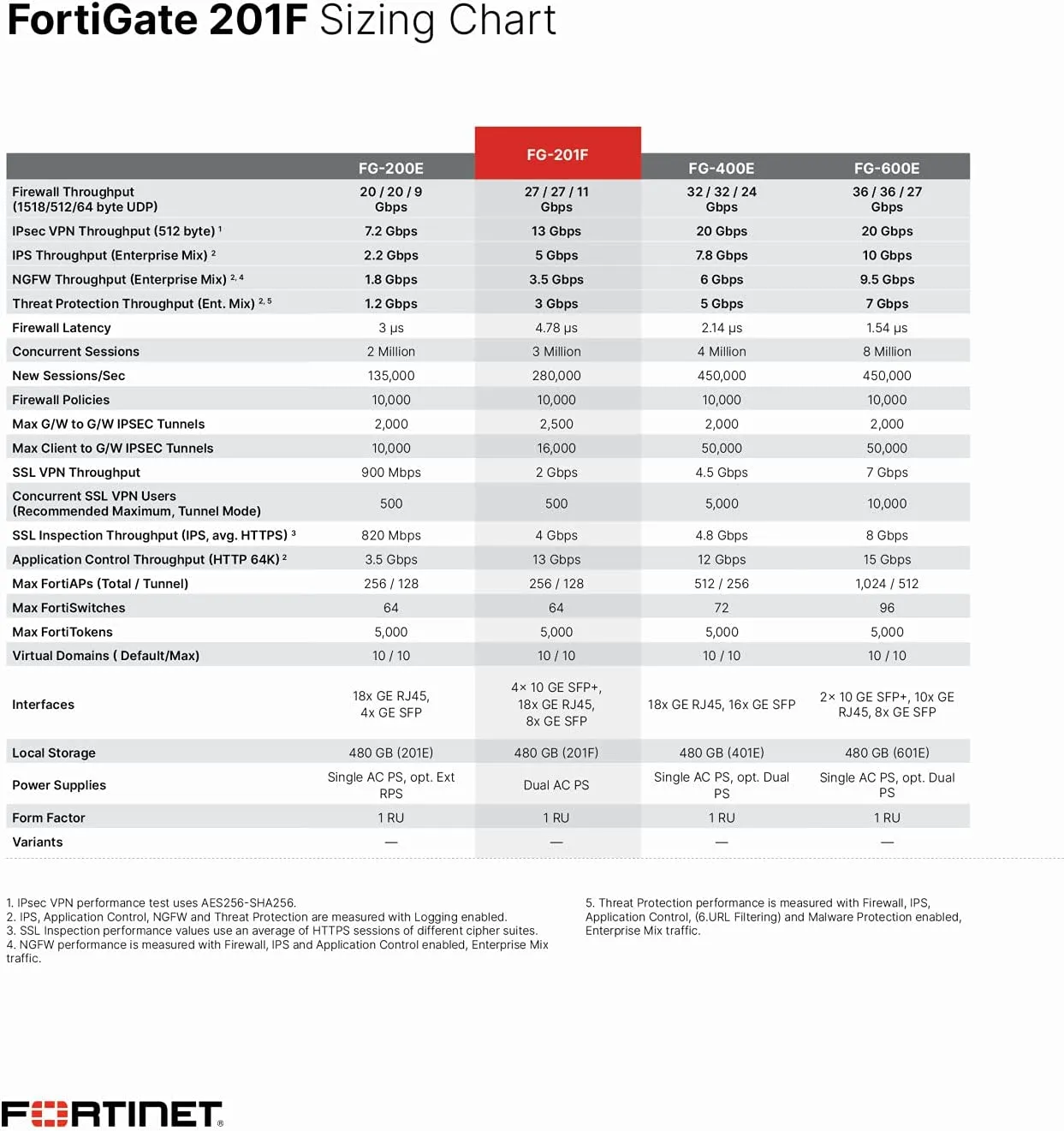

Compare to Similar Item
|
Sku |
FG-200F |
FG-201F |
|
Firewall |
10Gbps |
10 Gbps |
|
IPS |
5 Gbps |
5 Gbps |
|
NGFW |
3.5 Gbps |
3.5 Gbps |
|
Threat Protection |
3 Gbps |
3 Gbps |
|
Interfaces |
2 x GE RJ45 HA /MGMT Ports , 16 x GE RJ45 Ports , 2 x 10 GE SFP Slots , 2x 10 GE SFP Fortilink Slots , 8 x GE SFP Slots | 82 x GE RJ45 HA /MGMT Ports , 16 x GE RJ45 Ports , 2 x 10 GE SFP Slots , 2x 10 GE SFP Fortilink Slots , 8 x GE SFP Slots |
|
Internal Storage |
N/A |
1x 480 GB SSD |
