Description

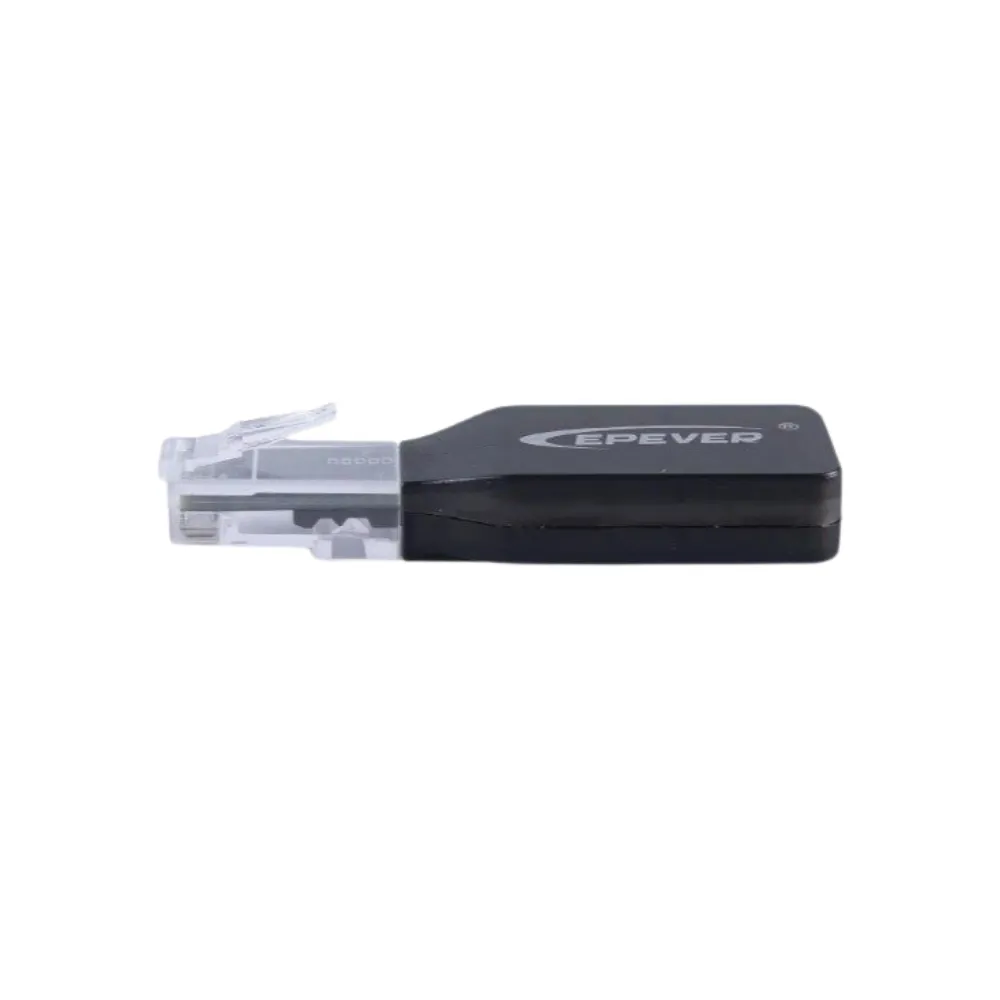

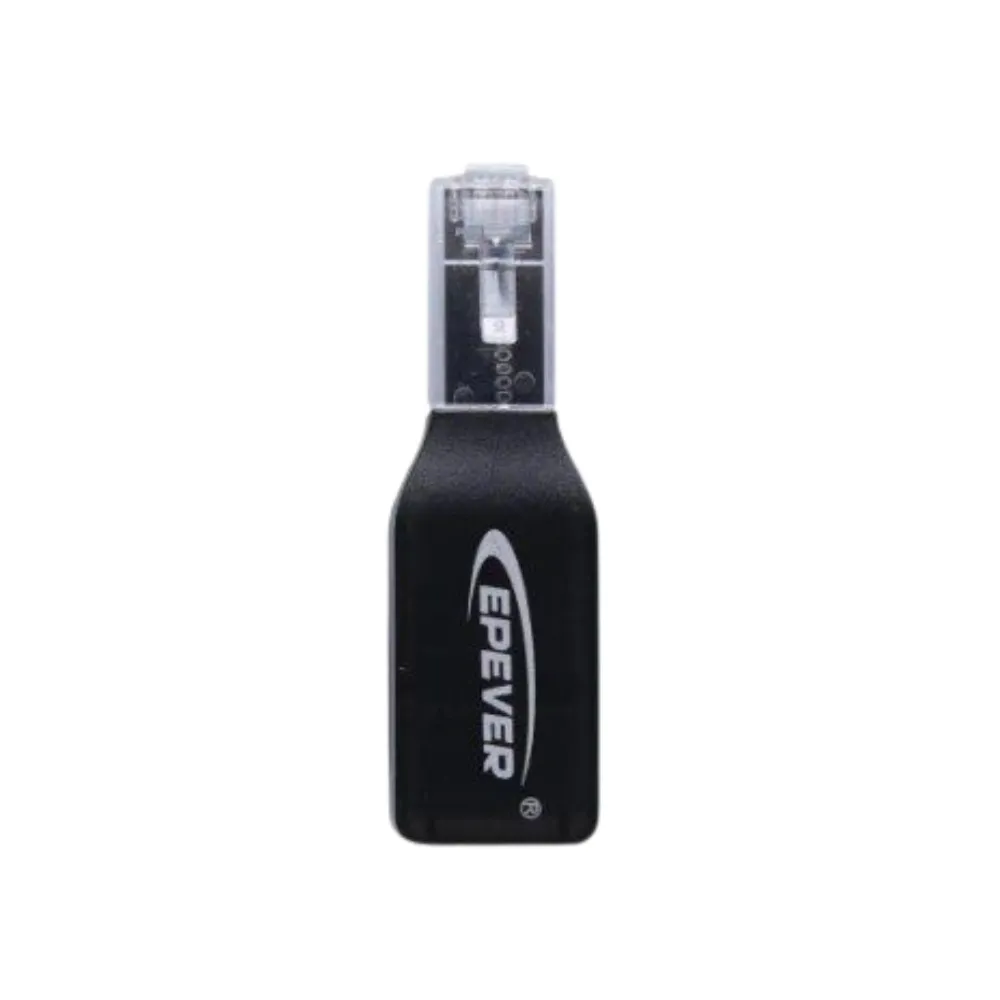

The EPEVER WiFi 2.4G Adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.
Features
- 2.4G WiFi networking communication
- Works with controllers, inverters, and inverter chargers with RJ45 interface
- Plug-and-Play with easy setup.
- Communication port powered directly, no external power required.
- Supports two working modes: Offline monitoring WIFI data upload to the cloud
- Products suitable for the Solar Guardian app are TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi.
Specification
Specification
- Model: EPEVER WiFi 2.4G RJ45 D
- Working voltage: 5V± 0.5V(Powered by RS485 com. port)
- Power Consumption: Peak emission: 150mA; Idle: 310uA
- Enclosure: IP54
- Communication method: RS485
- Com. parameters: 115200Bps, 8N1
- Working Frequency: 2.4-2.4835GHz
- Environment temp.: -40℃~ 85℃
- Interface standard: EPEVER general communication standardV1-1.0
- Com. protocol: EPEVER loT communication protocol V1.1
- Com. port: RJ45 D
- Dimension: 63* 19* 10mm
- Net weight: 7.7g
Note: The WiFi adapter working voltage is 4.5V~5.5V, and peak emission is 150mA, which is only suitable for devices that meet this requirement.
Note: the WiFi 2.4G RJ45 D module is specifically designed to be compatible with the Solar Guardian app. The Solar Guardian app currently supports TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi. An adapter is required for TracerAN(50-100A), TracerBP, DuoRacer, and Upower-Hi.
Data Sheet
About Epever
Beijing Epsolar Technology Co., Ltd. was established in March 2007 with more than 30 million RMB registered capital. It is a new, high-tech enterprise specializing in power product research, manufacturing, and marketing.
They provide products including solar charge controllers, off-grid inverters, LED drivers special power units etc., as well as design and supply relevant solar application systems. The company has passed the ISO9001: 2008, and products have passed CGC-SOLAR, CE, ROSH, FCC, and ETL certificate, as well as other domestic and international authoritative certification and many patents. The products have been extensively applied and highly appraised in many major projects at home and abroad. And sell in more than 120 foreign countries and regions.
