Ebyte OEM/ODM ECAN-E01S CAN2.0 To Modbus TCP Ethernet Data Converter Transparent Transmission CANBUS To RJ45 Cloud Transmission

[Supply voltage]：8V~28VDC

[Network protocol changer]：IP, TCP/UDP

[Network port specification]：standard RJ45

[Domain name resolution]：support

[IP acquisition method]：static IP, DHCP

[Product weight]：197g

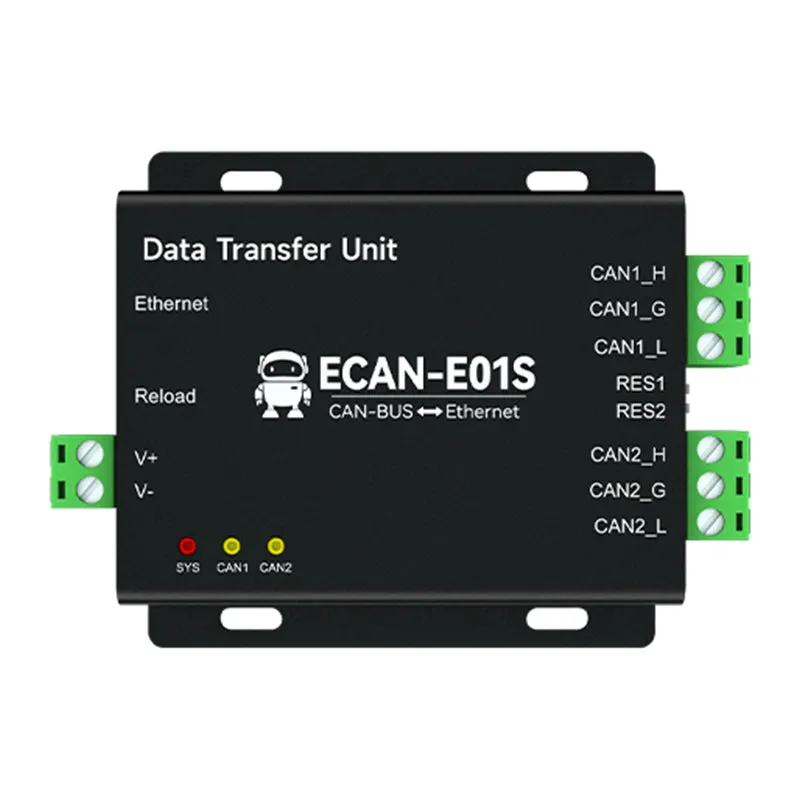

[Introduction]：ECAN-E01S is a high-performance industrial-grade Ethernet and CAN-bus data conversion device developed by Ebyte. It integrates 2 CAN-bus interfaces, 1 EtherNet interface, supports TCP/UDP protocol, and can easily Complete the intercommunication between CAN-bus network and Ethernet network.
ECAN-E01S has a built-in 120 ohm resistor, which can be enabled by dialing a code; it supports working in the temperature range of -40°C to 85°C. It has one 10M Ethernet interface; the maximum baud rate of 2 CAN ports communication is 1Mbps, with TCP Server, TCP Client, UDP and other working modes, and software configuration parameters can be configured through the host computer.
