Product Details
＋
Ebyte Wireless RF Module 433 mhz Soc Ti Module 433mhz Long Range CC1310 Wireless Networking Equipment
[IC]：CC1310
[Frequency]：431~446.5MHz
[Power]：30dBm
[Distance]：6.0km
[Interface]：UART/IO
[Weight]：4.8±0.1g

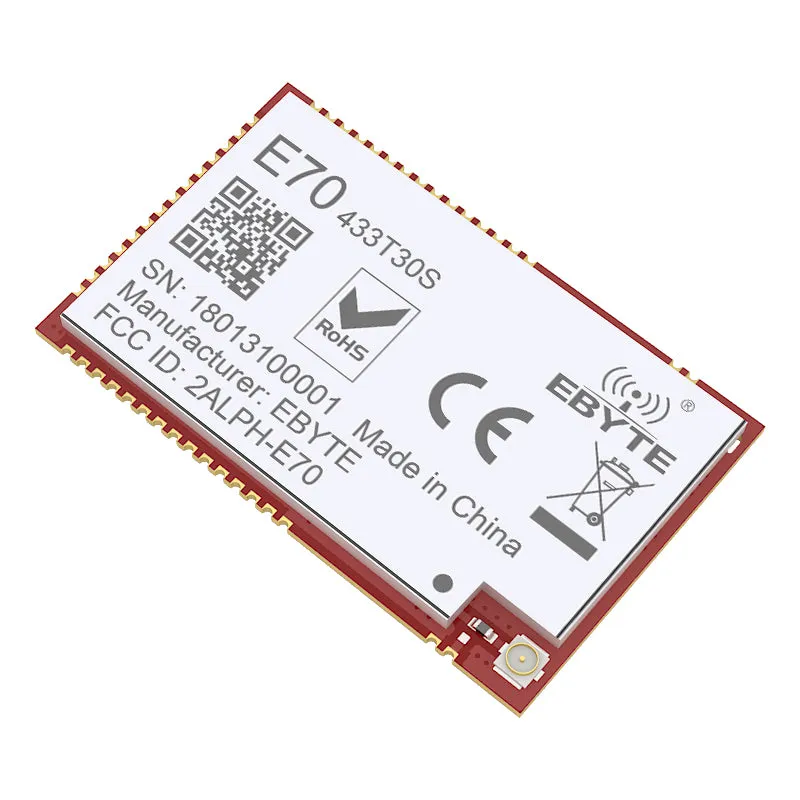

[Introduction]：E70-433T30S is wireless UART transceiver module based on the original CC1310 of TI, operating at 431~447MHz, TTL level and 3.3V IO port.The module has the function of data encryption & compression.
| RF Parameter | Value |
Remark |
| Working frequency |
431~446.5 MHz |
Default: 433MHz (24MHz oscillator) |
| Transmitting power | 17~30 dBm |
Default: 30dBm（About 1W） |
| Receiving sensitivity |
-110 dBm |
Air data rate: 50kbps |
| Air data rate | 2.5k~168kbps |
Default: 2.5kbps |
| Test distance | 6000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps |
| Hardware Parameter | Value |
Remark |
|
IC |
CC1310F128RGZ |
|
|
FLASH |
128 KB |
|
|
RAM |
20 KB |
|
|
Core |
Cortex-M3（MCU） Cortex-M0（RF） |
|
|

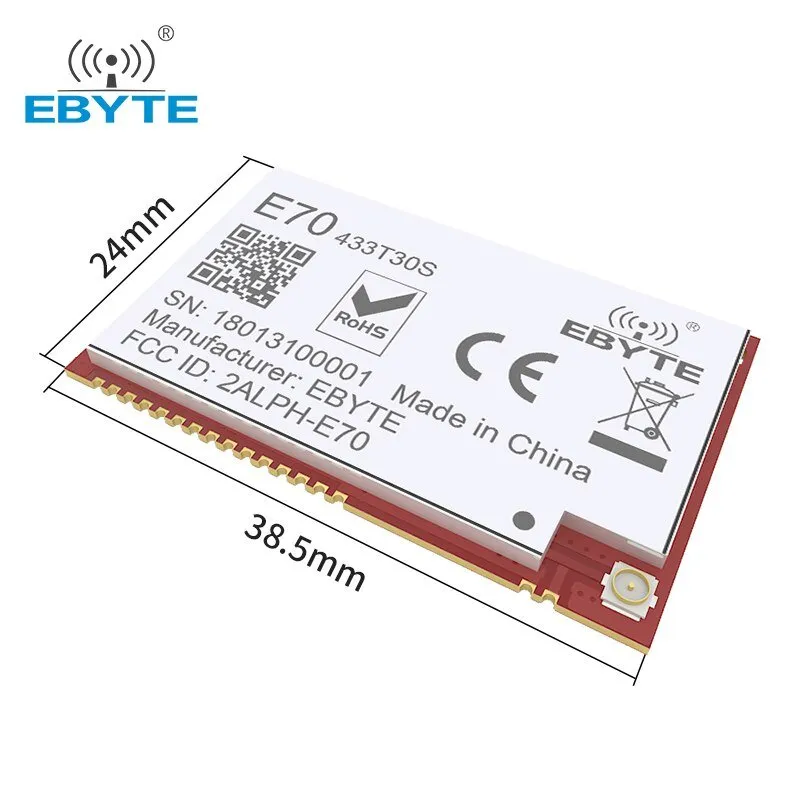

Size |
24 * 38.5 mm |
Without SMA |
|
Antenna type |
IPEX / Stamp hole |
|
|
Communication interface |
UART |

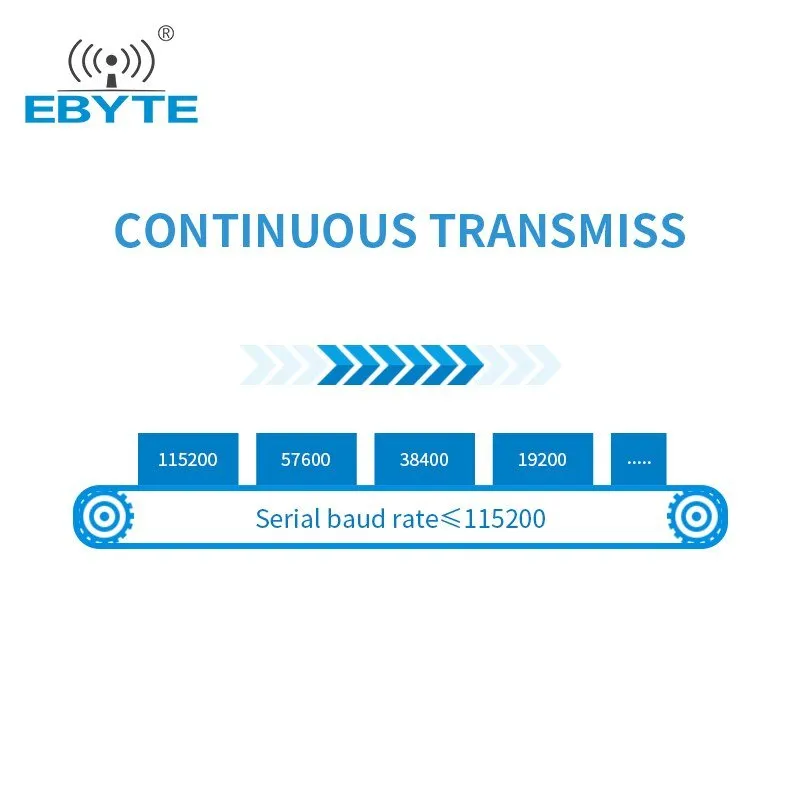

Baud rate: 1200~115200, default: 9600 |
|
Package |
SMD |
|
|
Buffer |
2048 bytes buffer |
Defined by user |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.6 | 5.0 | 5.5 | V | |
| Communication level | 2.1 | 3.3 | 3.8 | V | |
| Transmitting current |
500 | 530 | 580 | mA | 30dBm（1W） |
| Receiving current |
13 |
14 | 15 | mA |
|
| Sleep current |
2.0 |
4.0 | 5.5 | μA | |
| Operating temperature |
-40 | 20 |
85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
125 | ℃ |
