Product Details
＋

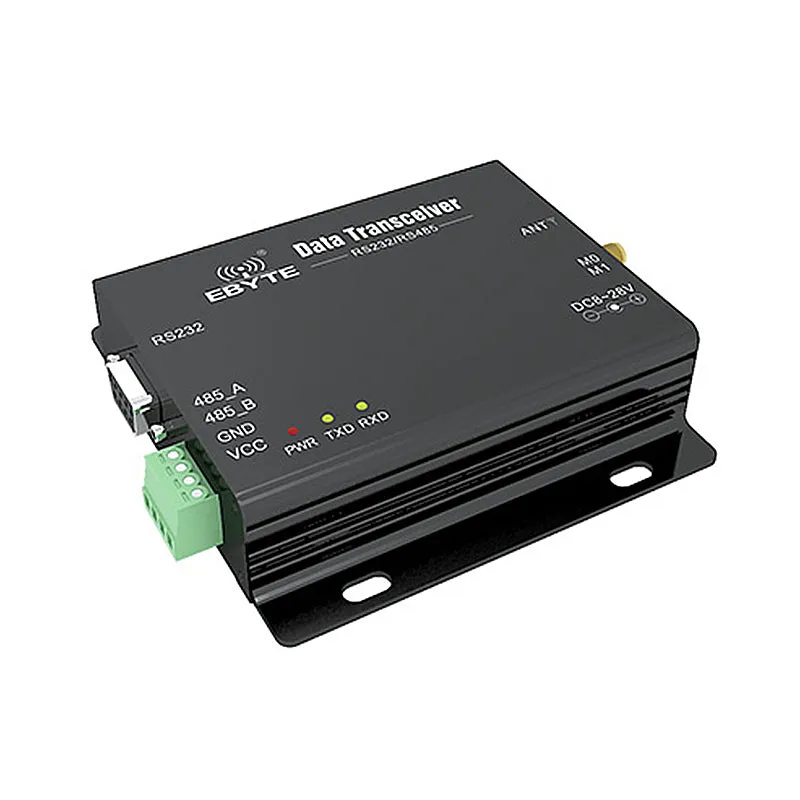

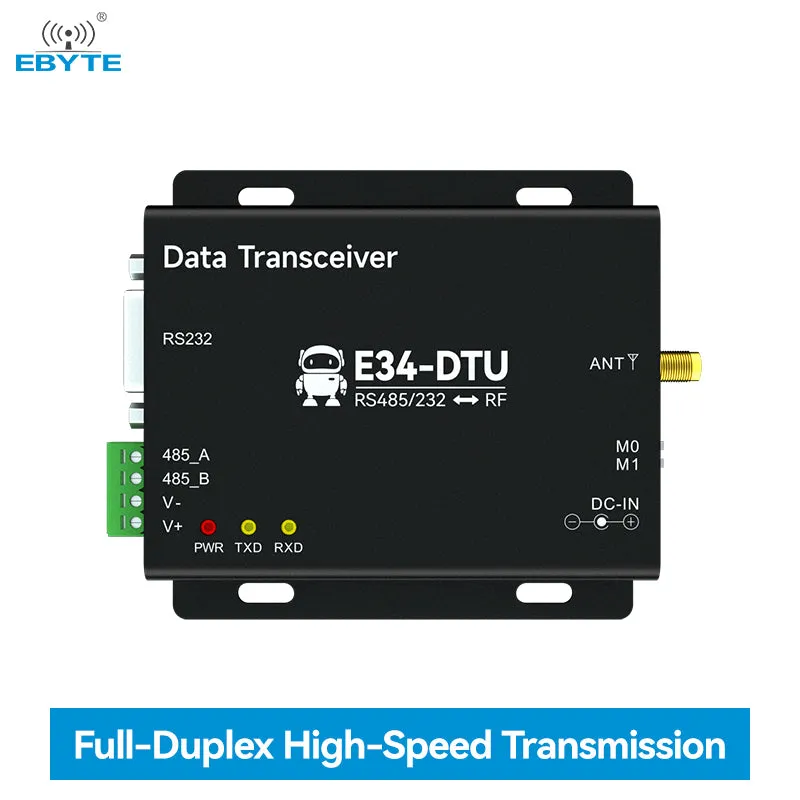

E34-DTU(2G4D20) RS232/RS485 interface full-duplex long transmitting distance & high data rate, transmitting and receiving at the same time.
[Frequency]：2.4~2.505GHz
[Power]：20dBm
[Distance]：2.0km
[Interface]：RS232/RS485
[Weight]：127±5g
[Introduction]：High-speed DTU E34-DTU-2G4D20 with RS232/RS485 interface,8V~28V, operating at 2.4~2.518GHz features full-duplex, unlimited package length, concentrated power density, long transmitting distance & high data rate, transmitting and receiving at the same time. It supports data encryption & compression. File transfer is available.
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 2400~2505 MHz | Default: 2.4GHz |
| Transmitting power | 20 dBm | About 100mW |
| Receiving sensitivity | -102 dBm | Air data rate: 250kbps |
| Air data rate | - | Self-adapted baud rate |
| Test distance | 2000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 250kbps |
| Hardware Parameter | Value | Remark |
|---|---|---|

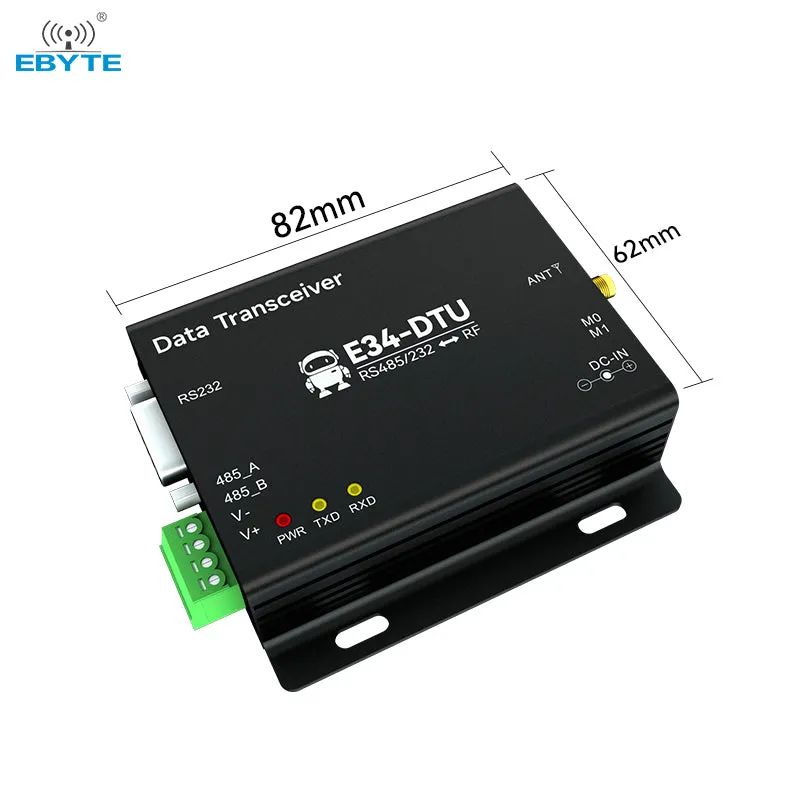

| Size | 82 * 62 * 25 mm | |
| Antenna type | SMA-K | |
| Communication interface | RS232 / RS485 | Baud rate: 1200~115200, default: 9600 |
| Package | DB-9 / Screwing | Standard DB9 Hole/3.81 connecting terminal |
| Buffer | 1024 bytes buffer | Automatically sub-packaging with 29 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|
| Power supply | 10 | 12 | 28 | V | |
| Transmitting current | 130 | 145 | 159 | mA | 20dBm（100mW） |
| stand-by current | 45 | 50 | 55 | mA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
