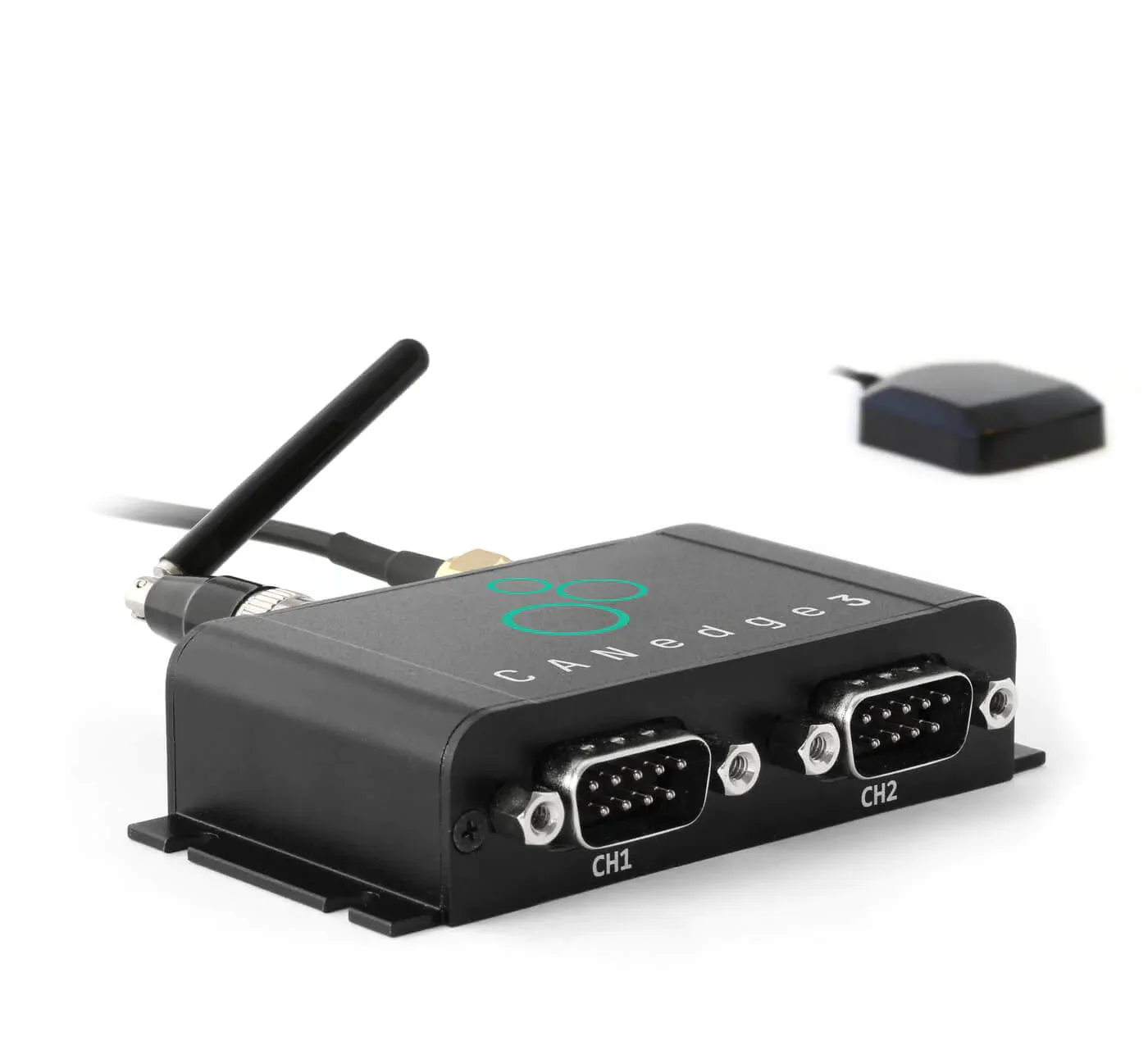

The quick to setup CANedge3 logger records timestamped CAN data (CAN/CAN FD) to an extractable 8 GB or 32 GB industrial SD card.  Data is pushed securely via 3G/4G to your own server with OTA update support. With GNSS/IMU data such as position, speed, altitude, and acceleration are included.

Ideal for telematics, R&D field tests, diagnostics and predictive maintenance.

Combine innovative design with cutting-edge components.

• 2 x CAN (incl. CAN FD) 2 x LIN channels
• Months of data wit extractable 8 or 32 GB industrial SD card
• Popular binary MDF4 log file format
• Advanced message filtering & transmit functionality
• Start/stop logging triggers based on CAN ID & data bytes
• Silent mode, bit rate auto-detection, cyclic logging
• Data compression & encryption (e.g. for GDPR, CCPA)
• Support for CAN/LIN error frame logging
• Fast boot time. Safely disconnect during use (power safe)

The CANedge3 provides a modern alternative with Software/APIs 100% free & open source with no subscription fees or vendor lock-in.

• Log data to the SD and auto-upload via global 3G/4G
• Use your own server (self-hosted or cloud)
• Includes Super SIM
• Simply add your SIM/server details to the config
• Configure file split size/period to control upload frequency
• 100% secure: HTTPS, credential encryption and more
• Manage via over-the-air updates (firmware & configuration)
• Power e.g. sensor-to-CAN modules via the 2nd port
• Zero fees. Zero lock-in. Interoperable. Open source tools

 Enrich you data with cutting-edge GNSS/IMU functionality

• Perfect for use cases like vehicle telematics
• Add 40 GNSS/IMU signals to your 2 x CAN/LIN data
• Full GNSS support (GPS, Galileo, BeiDou, GLONASS)
• Built-in gyroscope (roll, pitch, yaw) and accelerometer (X, Y, Z)
• High precision via sensor fusion - even in GNSS hostile areas
• Signals encoded as 'internal' CAN frames (separate channel)
• Configurable message inclusion/frequency (up to 5 Hz)
• DBC file included for easy decoding to human-readable form
• Optionally sync the CANedge RTC via precise GNSS time
• Flexible deployment via external GNSS or LTE/GNSS antenna

 The software toolbox includes:

• Editors: Easily modify your device config (online/offline)
• CANcloud: Manage connected CANedge3 devices & data
• S3 drive: Mount your S3 server as a 'local drive'
• Converters: Convert data to Vector ASC, PEAK TRC, CSV, ...
• asammdf GUI: DBC decode, plot and export your data
• Python API: Automate your data processing & integrations
• Dashboards: Visualize data in custom browser dashboards
