Model

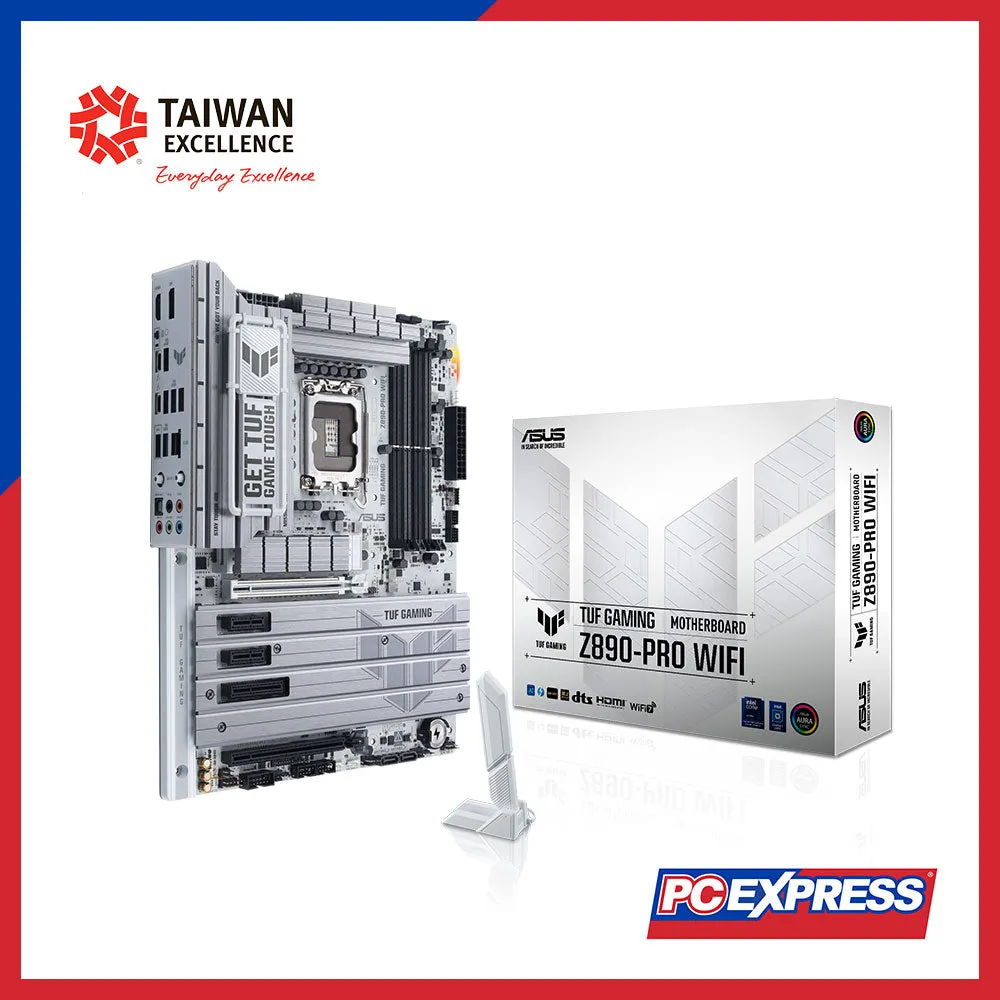

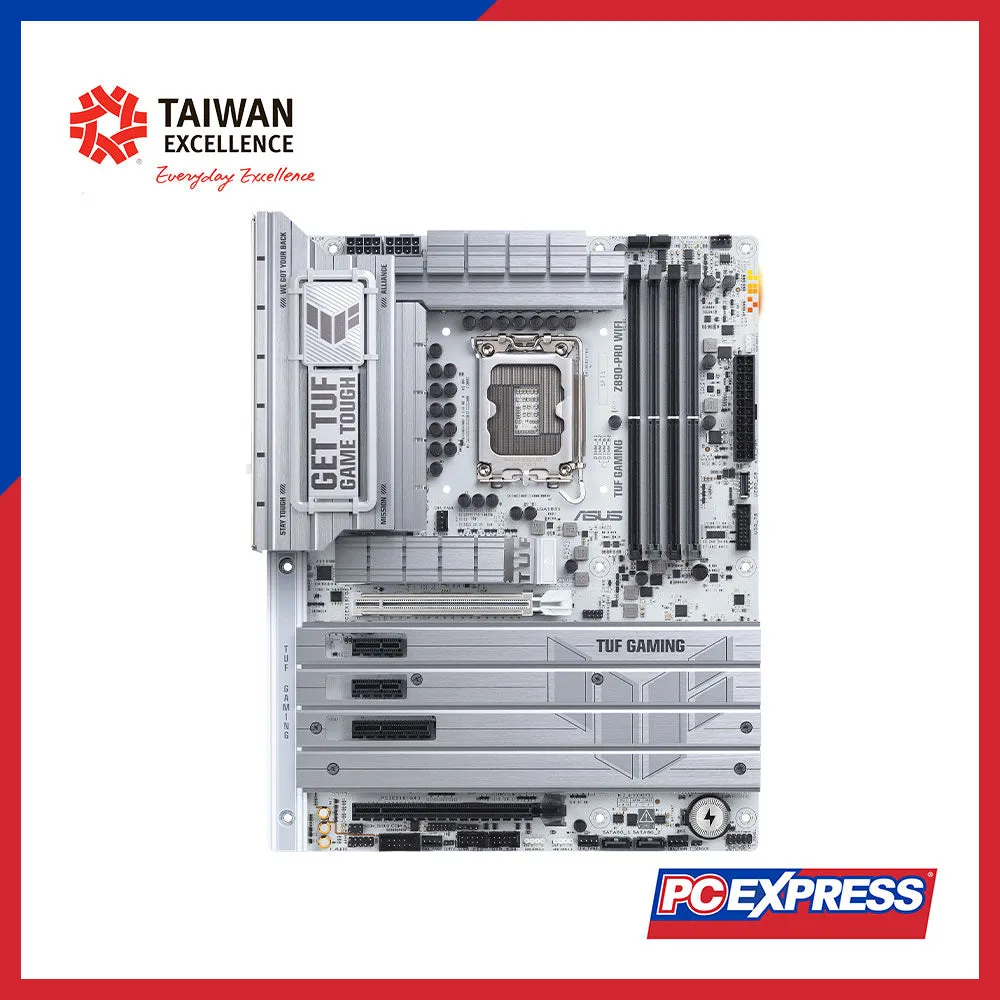

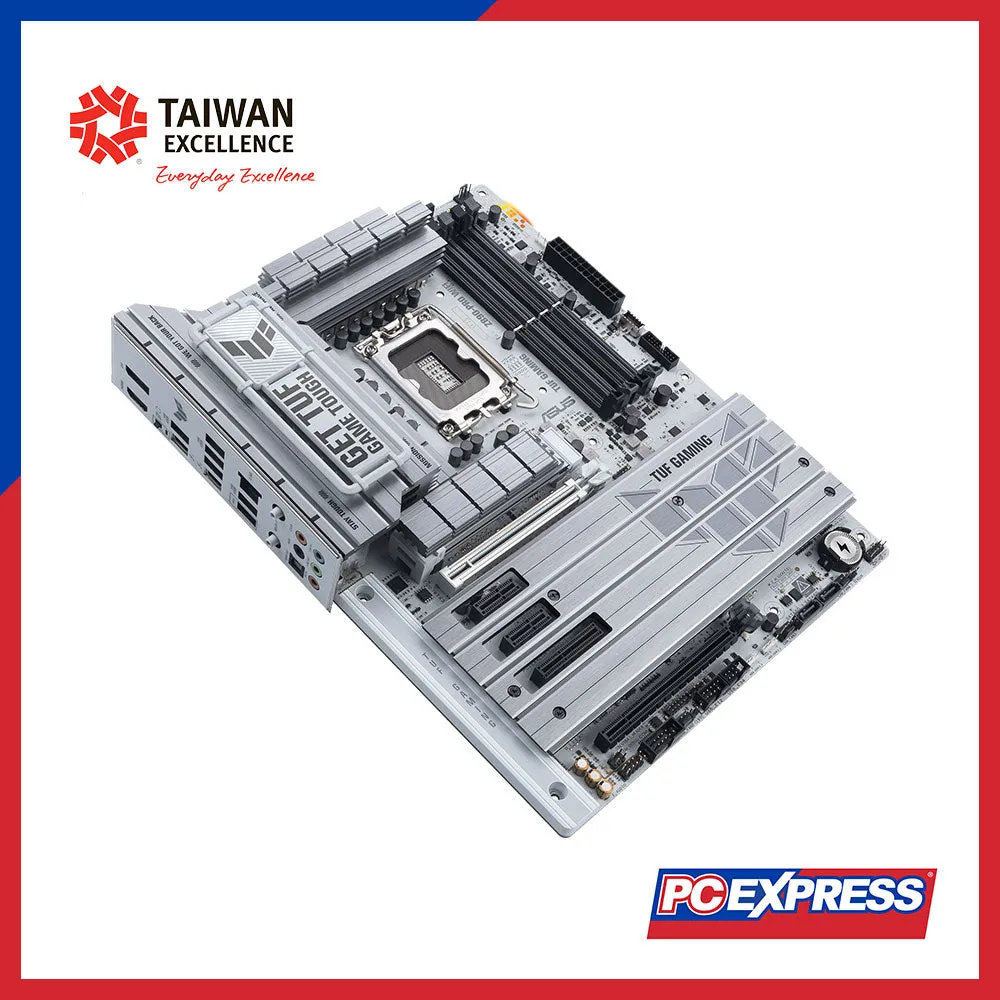

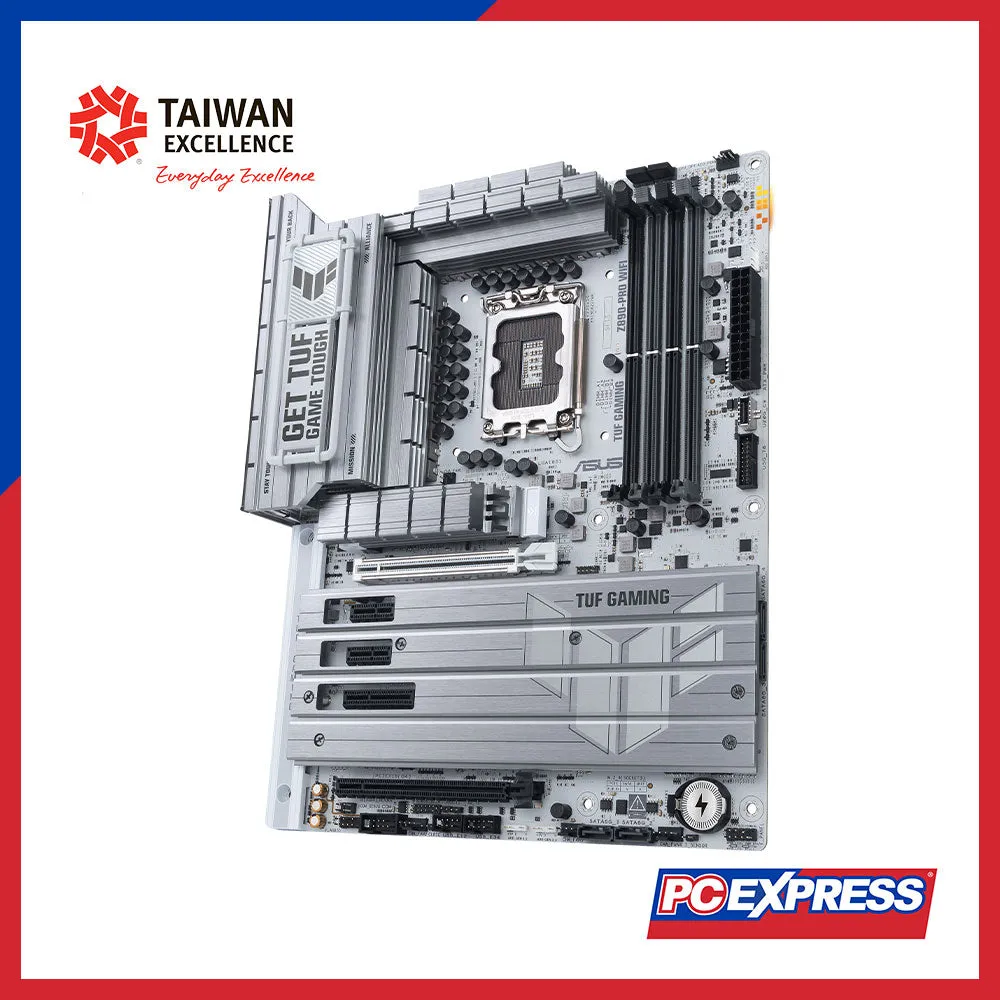

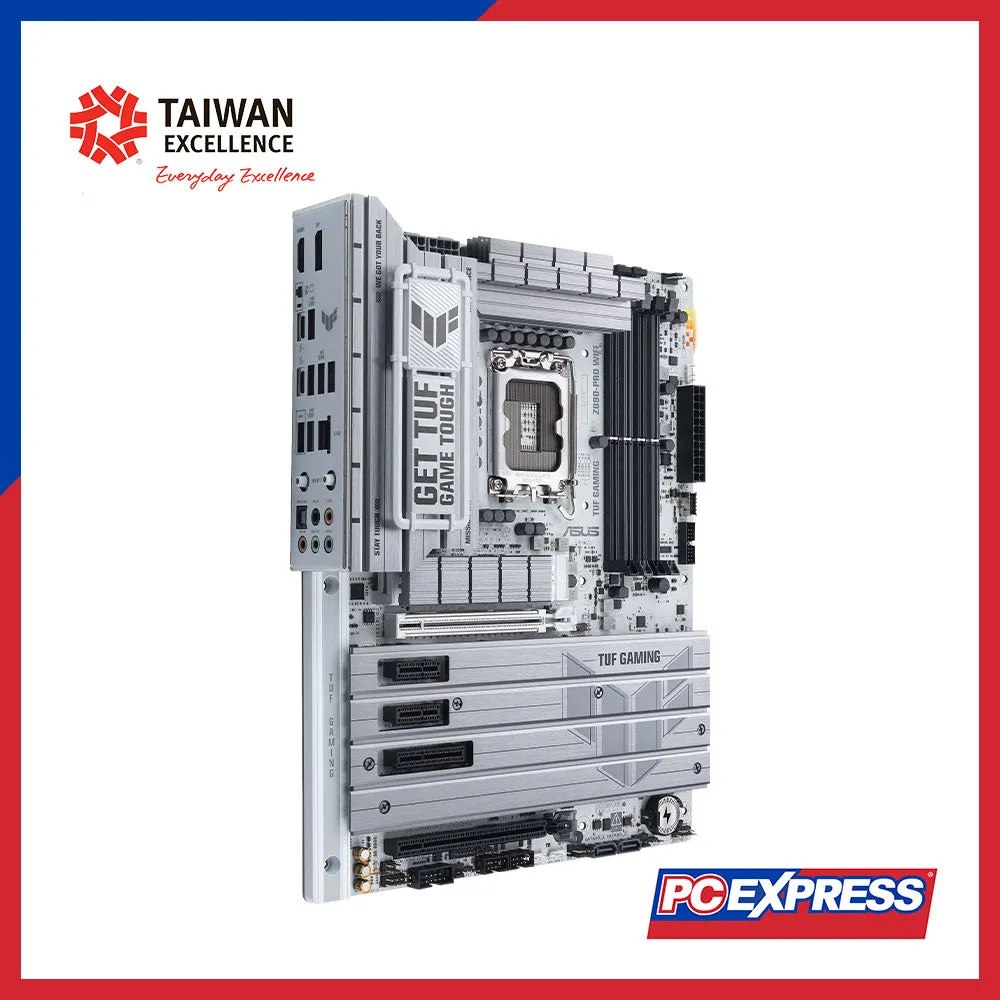

TUF GAMING Z890-PRO WIFI

News & Updates

2024/10/24: New BIOS released addressing bugs, including no display from the graphics card when installing Windows 11 24H2. EZ Flash tool recommended.

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Intel® Turbo Boost Technology 2.0 & Max 3.0 (depends on CPU type).

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max 192GB, DDR5, up to 9066 MT/s (OC), supports Intel® XMP, AEMPIII. Non-ECC, un-buffered, Dual-channel architecture.

Graphics

1 x DisplayPort, 1 x HDMI™ (supports 4K@60Hz), 2 x Thunderbolt™ 4 (USB-C®) supporting DisplayPort/Thunderbolt video outputs (up to 8K@60Hz).

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1

Storage

4 x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, SATA modes), 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports RAID 0/1/5/10.

Ethernet

1 x Intel® 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be) 2x2, up to 2.9Gbps (supports 2.4/5/6GHz), Bluetooth® v5.4

USB Ports

Rear: 2 x Thunderbolt™ 4 (USB-C®), 6 x USB 10Gbps (Type-A); Front: 1 x USB 20Gbps (USB-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers.

Audio

Realtek ALC1220P, 7.1 Surround Sound, supports up to 32-Bit/192 kHz, with premium capacitors, audio PCB layers, rear optical S/PDIF out, audio shielding.

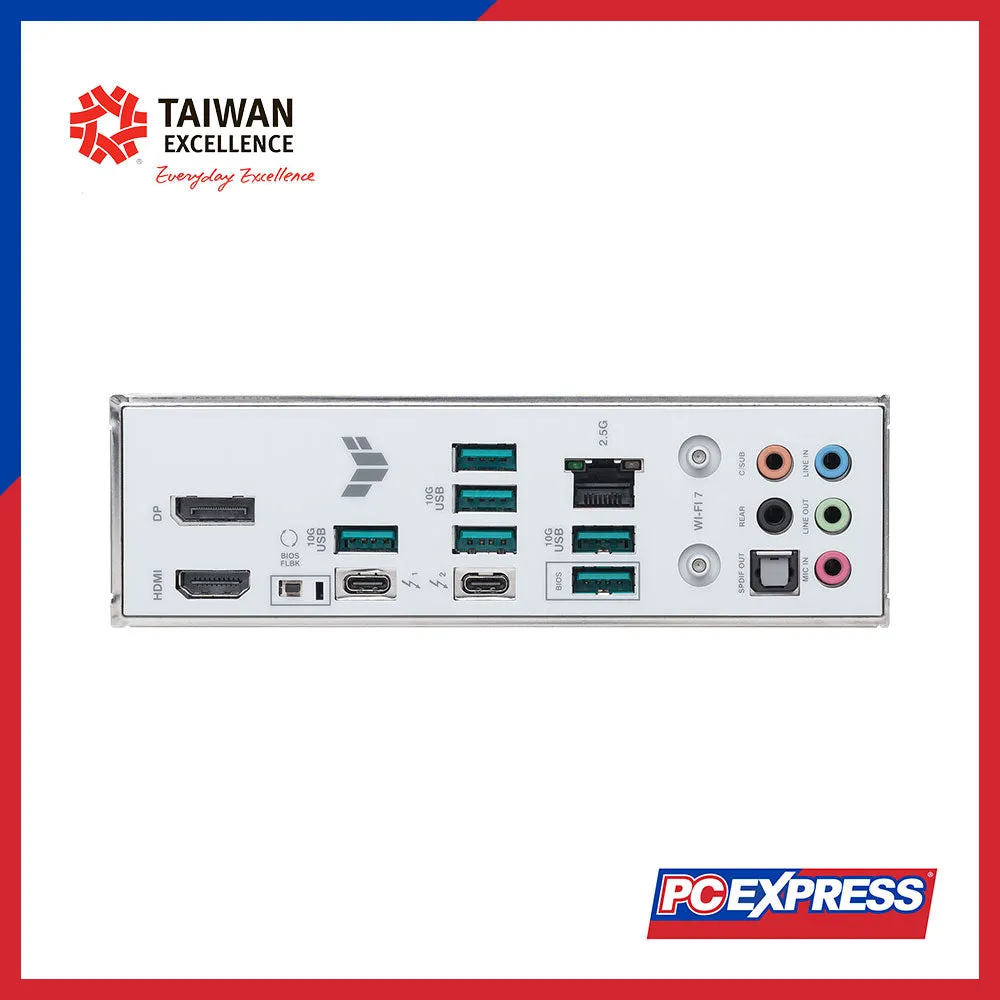

Back Panel I/O Ports

2 x Thunderbolt™ 4 (USB-C®), 6 x USB 10Gbps (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x 2.5Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack™

Internal I/O Connectors

Fan headers, Power connectors, 4 x M.2 slots, 4 x SATA 6Gb/s, USB headers, 3 x Addressable Gen 2 headers, Clear CMOS, Front Panel Audio, etc.

Special Features

DIGI VRM, ESD Guards, SafeSlot, Stainless steel back I/O, M.2 heatsink, Aura Sync, USB 20Gbps PD Fast Charge, ASUS EZ DIY (BIOS FlashBack™, ProCool).

Software Features

Armoury Crate (Aura Creator, Fan Xpert 4, Power Saving), ASUS DriverHub, TurboV Core, DTS Audio, Norton 360 (60 days trial), UEFI BIOS.

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, M.2 Q-Slide package, TUF GAMING sticker, Quick start guide.

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX (12 x 9.6 inches or 30.5 x 24.4 cm)
